Overview #
RAID is a powerful solution to data redundancy and performance
improvement for disks, which allows us to create a pool of
storage devices to ensure fault tolerance, improve I/O operations
or unify their capacity into a single logical volume. In this article,
you’ll learn how to configure RAID from scratch on your Linux server
using the mdadm tool. We’ll also cover the different types of RAIDs
and the use case for each one.
Requirements #
For this guide, you should have installed the mdadm package,
which provides the utilities for working with RAID on Linux.
On Debian/Ubuntu, the command to install it is:
sudo apt install mdadm
Or on Fedora/RHEL based environment, the command is:
sudo dnf install mdadm
What is RAID? #
RAID (Redundant Array of Independent Disks) is a technology that combines multiple physical storage devices into a single unit, with the goal to improve data redundancy (to prevent data loss) and to improve the performance of read/write operations. RAID can be done both via software or hardware, but hardware RAID is beyond the scope of this guide.
Levels #
There are different “levels” or configurations of RAID, with each one offering distinct benefits. The most commonly used are RAID 0, 1, 5 and 6.

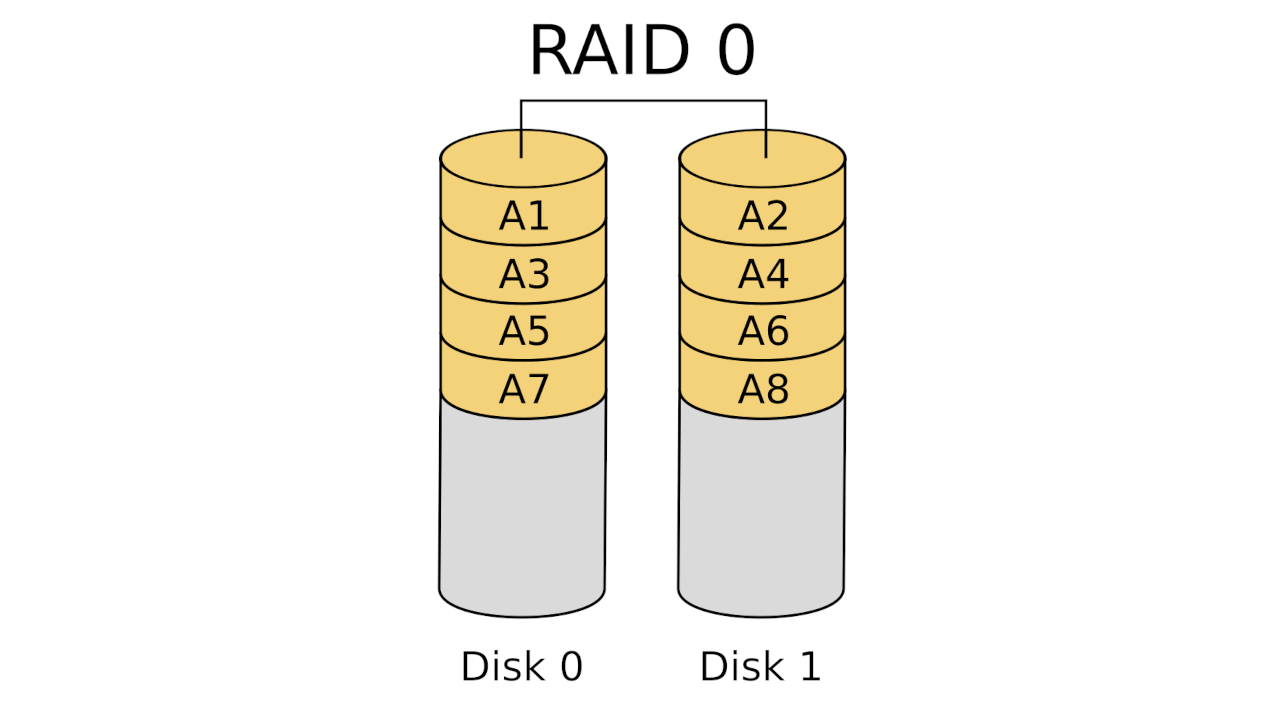

RAID 0 (Striping) #
This level focuses entirely on improving performance. The data is split into “stripes” which are distributed equally across all the disks. This improves both the read and write speeds, since operations can be done in parallel. The main drawback of this level is that, if one disk is damaged/corrupted, all the information will be lost. It’s mainly used when data loss is not a big concern.

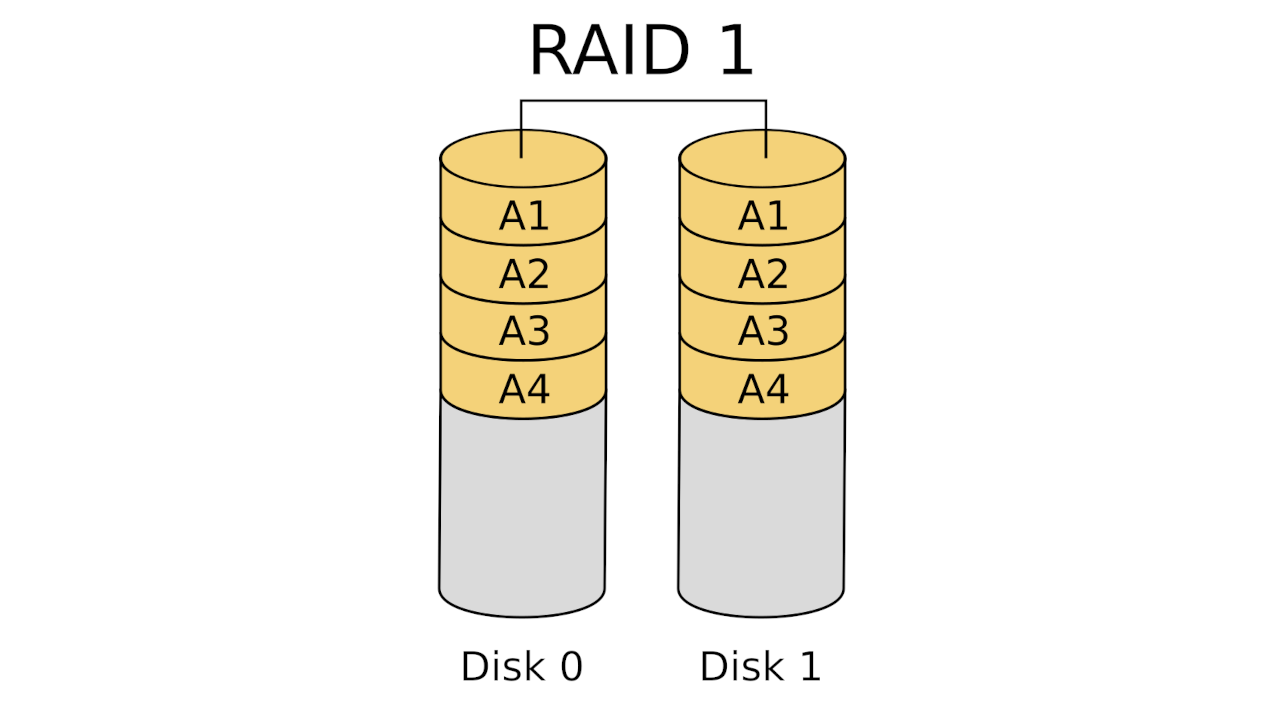

RAID 1 (Mirroring) #
This configuration ensures data redundancy, preventing data loss. It works duplicating the data on all the drives, so if one of the disks fail there’s an exact copy of the file on the other drives. This improves read performance, since data can be read in parallel. The principal disadvantage of RAID 1 is that the storage capacity is limited to the capacity of a single disk. Also, the write speed might be slower. It’s the best for critical systems where the data must be secured and available at any moment.

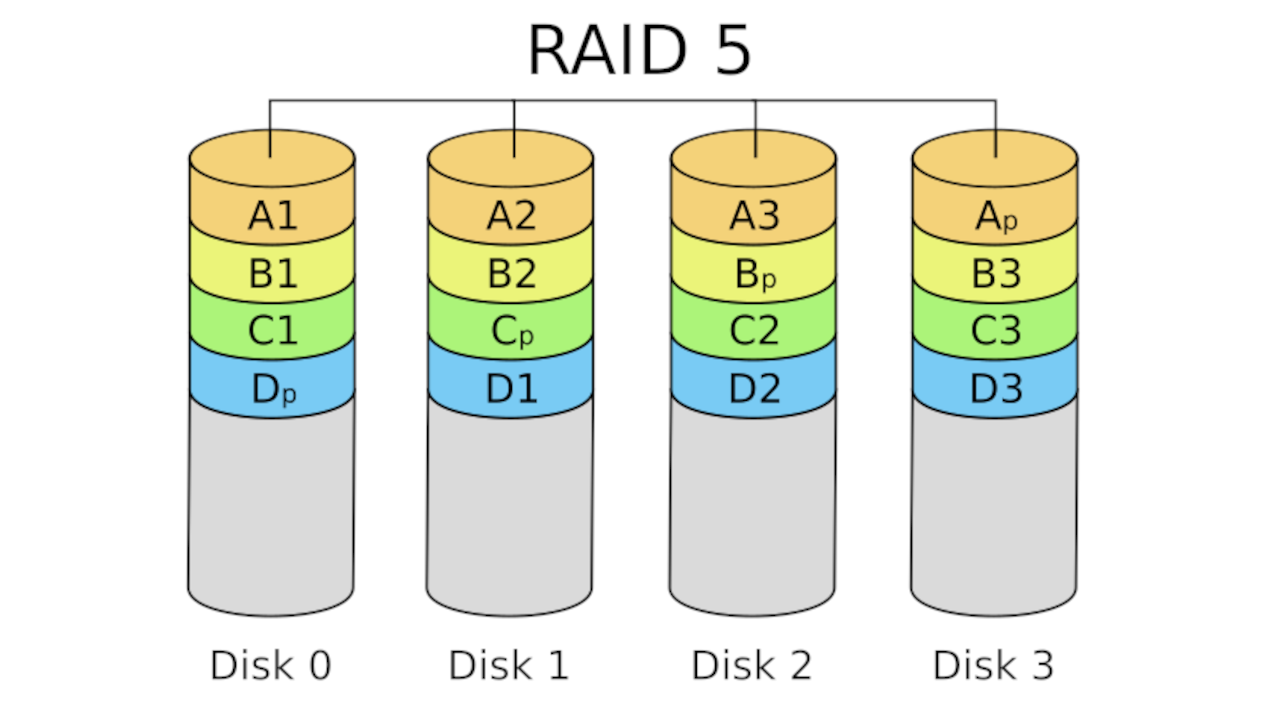

RAID 5 (Striping with distributed parity) #
Just like RAID 0, this level splits the data across all the disks, but it adds the concept of a “parity block”, a checksum that makes it possible to reconstruct the original data in case a disk fails. It offers a good balance of performance, redundancy and capacity, since data can be read/written in parallel, it has a fault tolerance mechanism and the total capacity is (N-1) disks where N is the amount of disks we are using. The downside of this level is that the write speed is considerably slower, since the CPU needs to calculate the parity blocks. It’s best suited for general purpose servers, where balance is preferred.

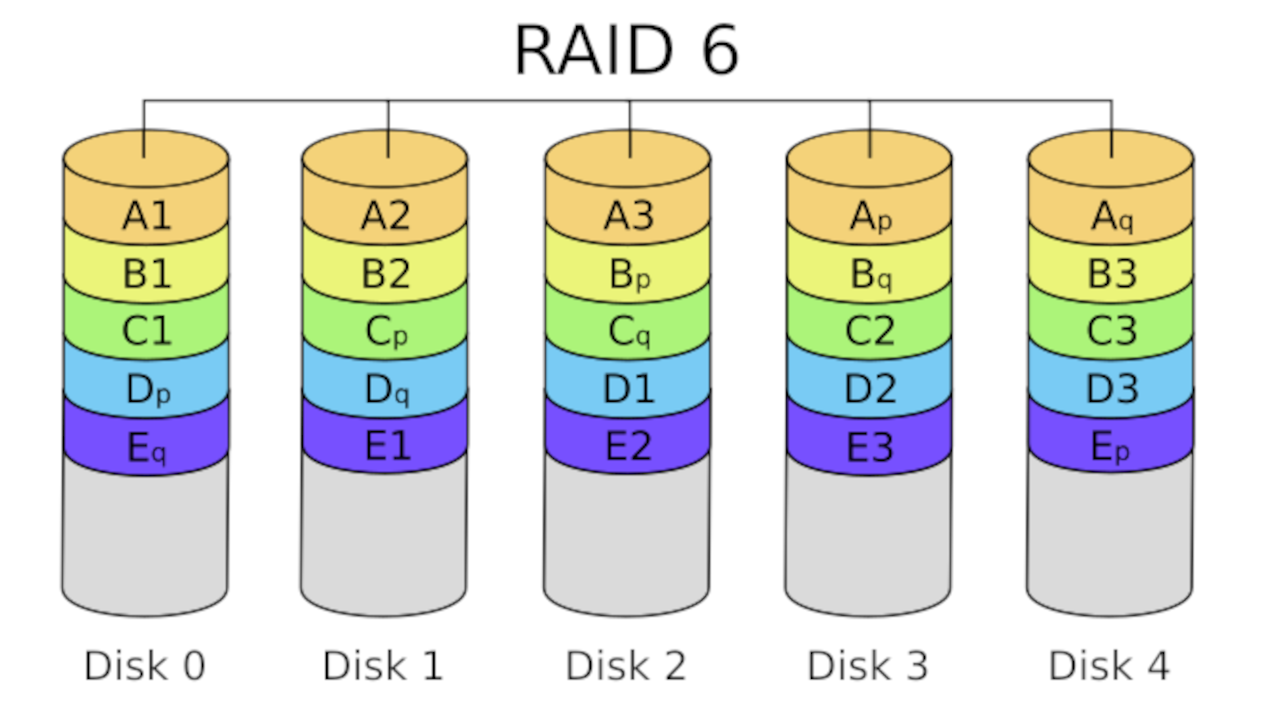

RAID 6 (Striping with double distributed parity) #
It’s an extended version of RAID 5 which adds a parity block making it able to withstand the failure of two storage devices simultaneously without losing data. The write speed gets even slower than with RAID 5. The total capacity will be (N-2), so we’ll be losing the capacity of two disks.
Creating a RAID #
Now it’s time to learn how to actually create a RAID. First of all, we have to identify the name of the disks we want to be part of the array. In my case, I have four virtual disks:
myuser@deb-homelab:~# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
vda 254:0 0 5G 0 disk
vdb 254:16 0 5G 0 disk
vdc 254:32 0 5G 0 disk
vdd 254:48 0 5G 0 disk
If I want to make a RAID 0 using vda and vdb, I should
run:
root@deb-homelab:~# mdadm --create /dev/md/myraid0 --level=0 --raid-devices=2 /dev/vda /dev/vdb
mdadm: Defaulting to version 1.2 metadata
mdadm: array /dev/md/myraid0 started.
root@deb-homelab:~#
mdadm: is the RAID software for Linux.--create: this tellsmdadmthat we want to create a RAID./dev/md/myraid0: is the name we are giving to this new array. Make sure it starts with/dev/md.--level=0: sets the level of the RAID. In this case we want to generate a RAID 0.--raid-devices=2: how much disks we’ll use in the array./dev/vda /dev/vdb: the disks to use in the RAID.
We can verify our RAID was successfully created running:
root@deb-homelab:~# cat /proc/mdstat
Personalities : [raid0]
md127 : active raid0 vdc[1] vdb[0]
10475520 blocks super 1.2 512k chunks
unused devices: <none>
root@deb-homelab:~#
Now, let’s create a RAID 5! First I’ll do will be to delete the RAID we’ve just made:
root@deb-homelab:~# mdadm --stop /dev/md/myraid0
mdadm: stopped /dev/md/myraid0
root@deb-homelab:~#
A good practice would be to also delete the RAID superblocks from those devices, to prevent the operating system from thinking they are part of a RAID.
root@deb-homelab:~# mdadm --zero-superblock /dev/vdb /dev/vdc
root@deb-homelab:~#
And now, to create the RAID 5, all we have to do is to change
the --level flag to 5:
root@deb-homelab:~# mdadm --create /dev/md/myraid5 --level=5 --raid-devices=4 /dev/vdb /dev/vdc /dev/vdd /dev/vde
mdadm: Defaulting to version 1.2 metadata
mdadm: array /dev/md/myraid5 started.
root@deb-homelab:~# apt install htop
Reading package lists... Done
root@deb-homelab:~# cat /proc/mdstat
Personalities : [raid0] [raid6] [raid5] [raid4]
md127 : active raid5 vde[4] vdd[2] vdc[1] vdb[0]
15713280 blocks super 1.2 level 5, 512k chunk, algorithm 2 [4/4] [UUUU]
unused devices: <none>
root@deb-homelab:~#
Nested RAID #

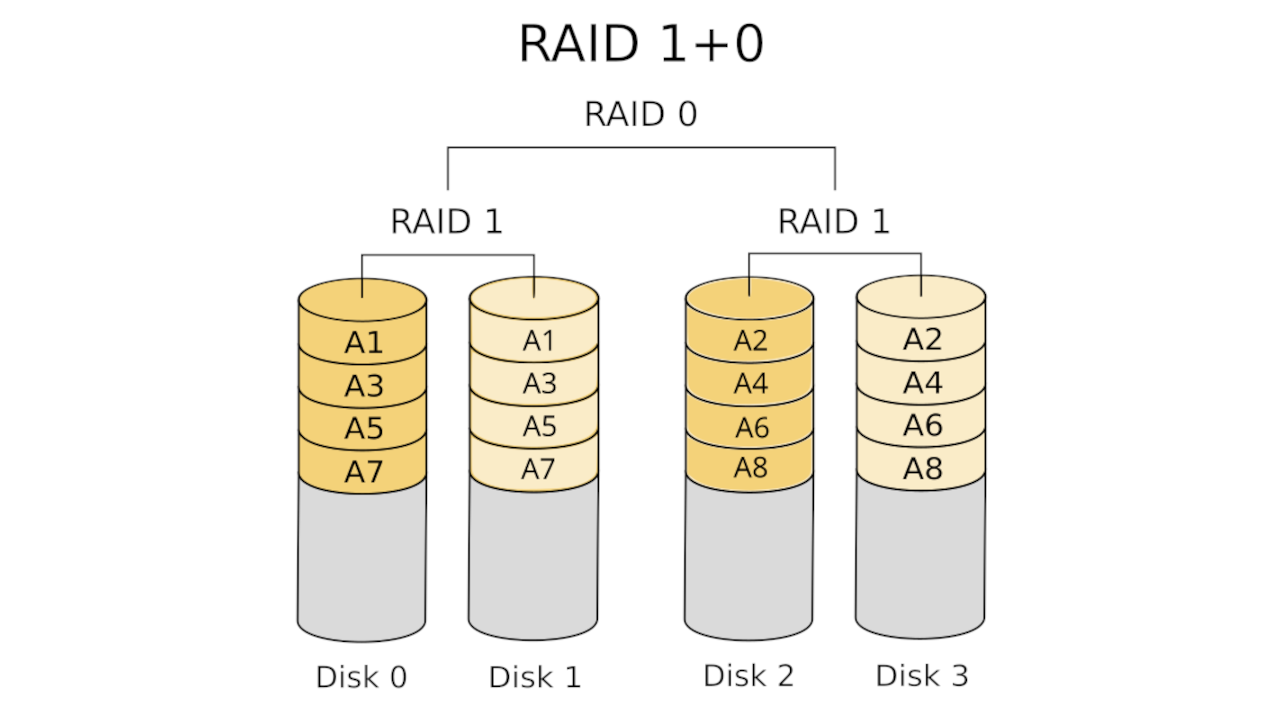

A nested RAID is a configuration where two or more RAID levels are combined to achieve a better balance or performance than what a single RAID could offer. In essence, a nested RAID could be interpreted as a “RAID of RAIDs”. A common example of this is RAID 10 (1+0), which strips the data across mirrored pairs of disks, giving us the write speed boost of RAID 0, while also the fault tolerance of RAID 1, since the data is mirrored.

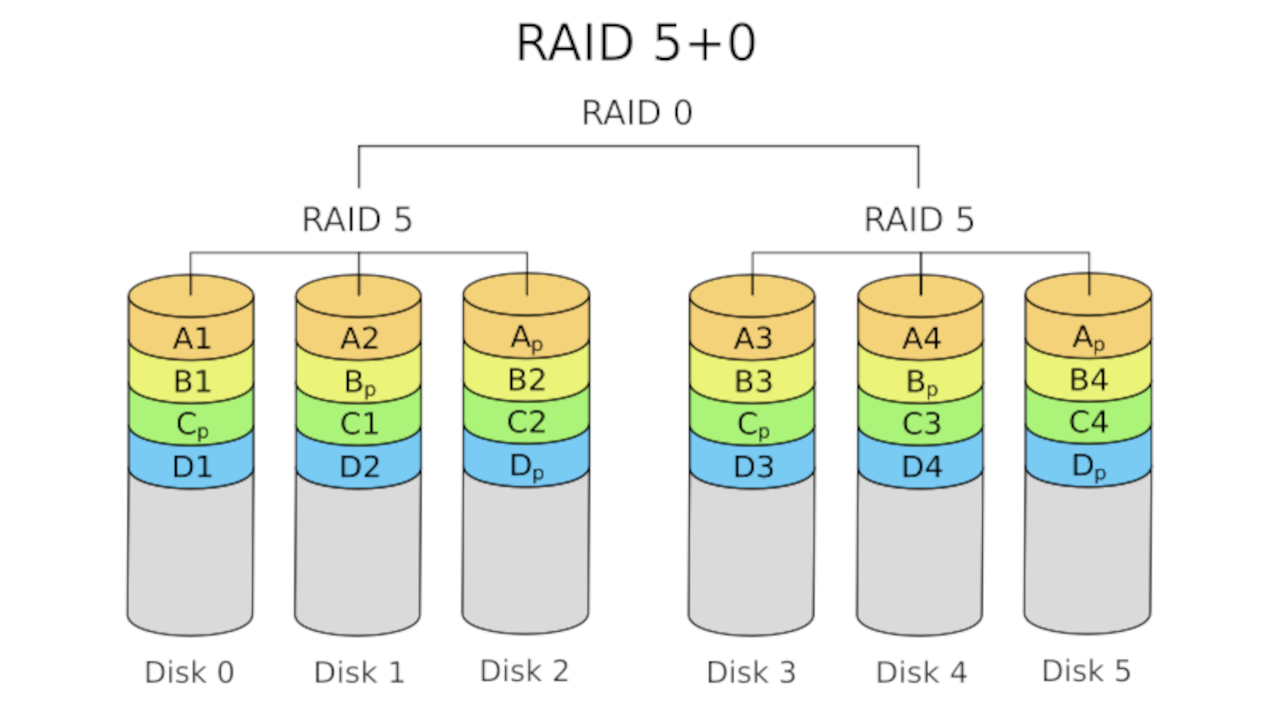

RAID 50 (5+0) is another nested RAID configuration, which divides the data through an array of RAID 5s, combining the inherit speed boost of RAID 0, with the space-efficient fault tolerance of distributed parity. This configuration in particular resists the failure of one disk per RAID 5 in the array.
Creating a nested RAID #
We can build a nested RAID just by changing the storage devices
we pass to mdadm --create with RAID devices. For example, to
create a RAID 10, I’ll first create two RAID 1s, and then I’ll
make a RAID 0 passing those RAIDs as arguments:
root@deb-homelab:~# mdadm --create /dev/md/raid1a --level=1 --raid-devices=2 /dev/vdb /dev/vdc
mdadm: array /dev/md/raid1a started.
root@deb-homelab:~# mdadm --create /dev/md/raid1b --level=1 --raid-devices=2 /dev/vdd /dev/vde
mdadm: array /dev/md/raid1b started.
root@deb-homelab:~# mdadm --create /dev/md/raid10 --level=0 --raid-devices=2 /dev/md/raid1a /dev/md/raid1b
mdadm: Defaulting to version 1.2 metadata
mdadm: array /dev/md/raid10 started.
root@deb-homelab:~#
Now if we see the contents of /proc/mdstat, we’ll notice there
are three devices, and one of them is made of the other two RAIDs:
root@deb-homelab:~# cat /proc/mdstat
Personalities : [raid6] [raid5] [raid4] [linear] [multipath] [raid0] [raid1] [raid10]
md125 : active raid0 md126[1] md127[0]
10465280 blocks super 1.2 512k chunks
md126 : active raid1 vde[1] vdd[0]
5237760 blocks super 1.2 [2/2] [UU]
md127 : active raid1 vdc[1] vdb[0]
5237760 blocks super 1.2 [2/2] [UU]
unused devices: <none>
root@deb-homelab:~#
The same would apply for any other kind of nested RAID. For instance, to create a RAID 51 we’ll do:
root@deb-homelab:~# mdadm --create /dev/md/raid5a --level=5 --raid-devices=3 /dev/vdb /dev/vdc /dev/vdd
mdadm: array /dev/md/raid5a started.
root@deb-homelab:~# mdadm --create /dev/md/raid5b --level=5 --raid-devices=3 /dev/vde /dev/vdf /dev/vdg
mdadm: array /dev/md/raid5b started.
root@deb-homelab:~# mdadm --create /dev/md/raid51 --level=1 --raid-devices=2 /dev/md/raid5a /dev/md/raid5b
mdadm: array /dev/md/raid51 started.
Conclusion #
This guide explains the fundamental ideas behind RAID
and how to create your own using Linux and mdadm. If
you find this page useful, feel free to share it with
someone else. Have a nice day!
